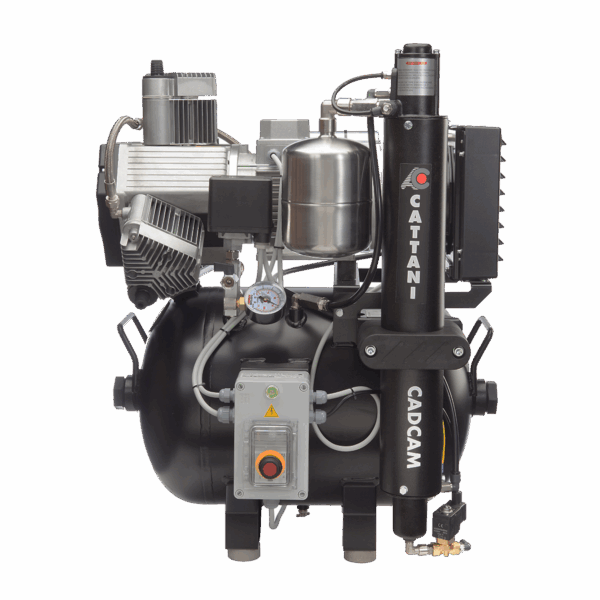

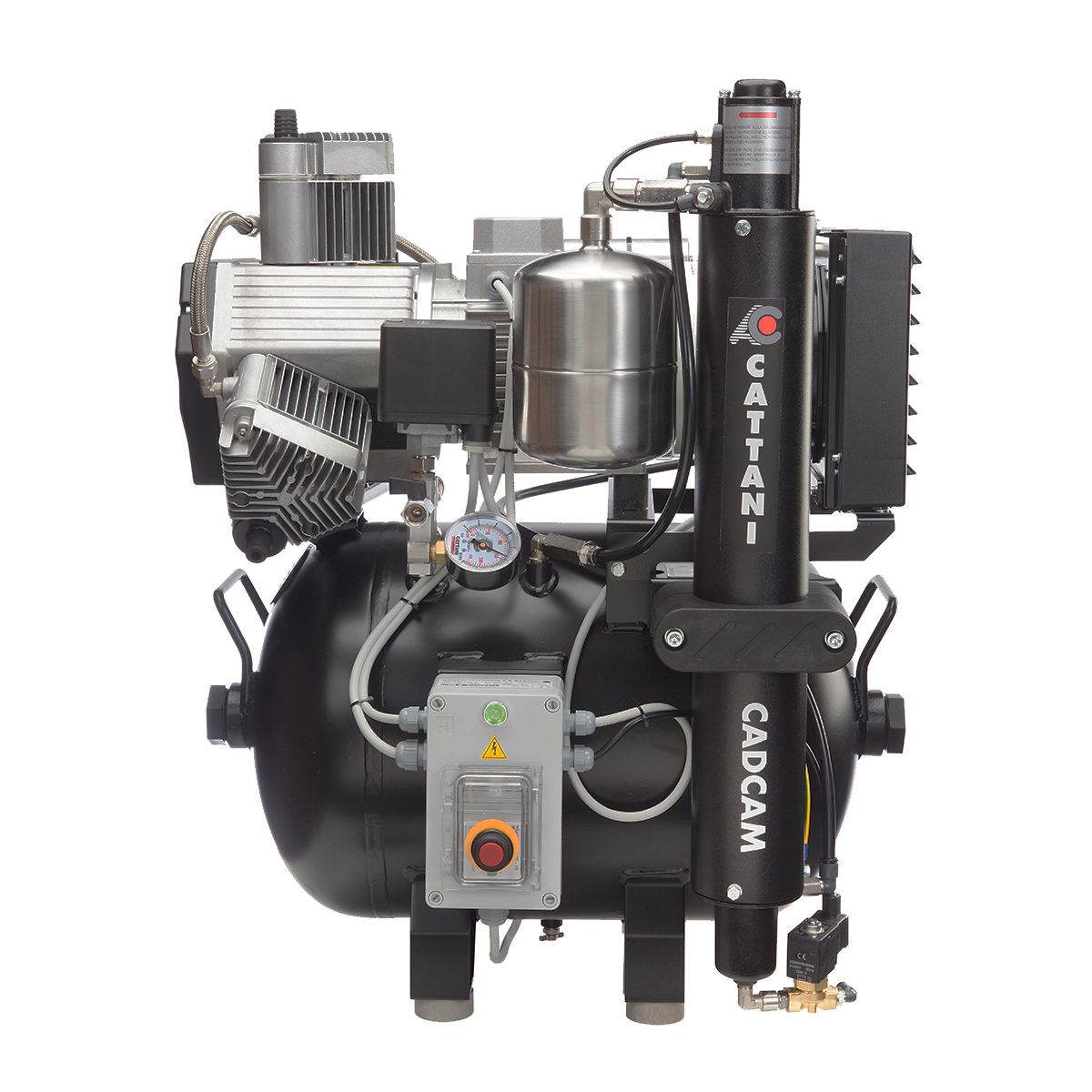

AC310
3 Cylinder CAD/CAM Compressor
One of the most popular model in our CAD/CAM compressor range, the AC310 comes with a 45-litre tank capacity. Cattani compressors are completely oil-free, offered specifically to meet the demands set by CAD/CAM manufacturers.
Description
Details That Matter
- 7-year full parts and labour warranty
- Purpose-built to maintain an 8-bar pressure over long CAM cycles
- Certified food grade resin coated tank
- Added antimicrobial protection with Biocote® silver-ion lining in tank
- Noise reduction option available (see AC310Q)
- Pre-filter for humid climates available upon request
Features
7 Years Warranty
Oil Free
HEPA H14 Dryer Filter
For Humid Climates
Includes Installation Kit
Downloads
Specifications
| POWER | 1PH, 230V, 10.2A, 1.5 kW |
| SOUND OUTPUT dB(A) | 73.6 |
| CONTINUOUS AIRFLOW AT 8 BAR nl/min | 108 |
| MAX AIR FLOW AT 5 BAR nl/min | 165 |
| TANK SIZE (litres) | 45 |
| HEIGHT (mm) | 750 |
| WIDTH (mm) | 620 |
| DEPTH (mm) | 520 |
| WEIGHT (kg) | 68 |
