AC410

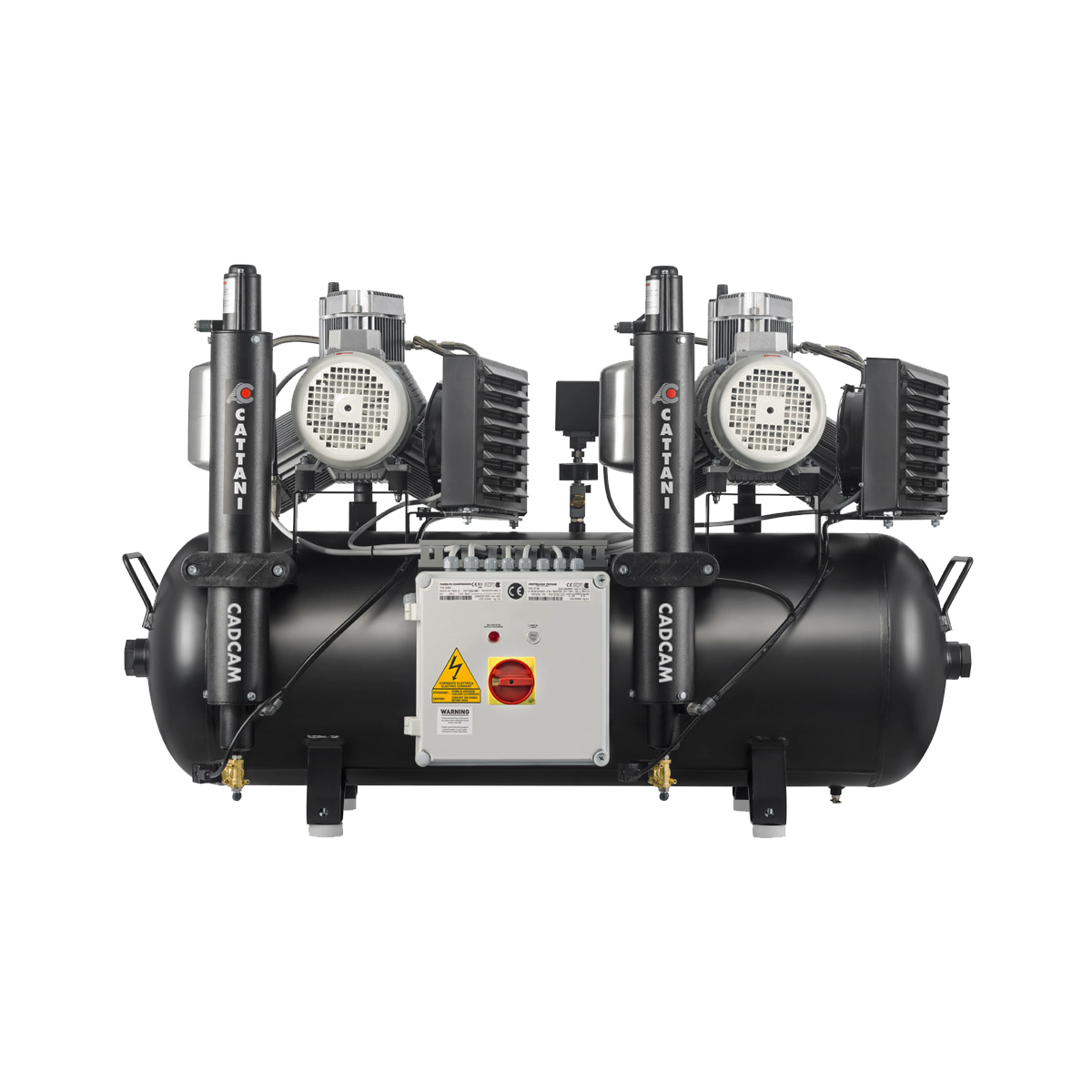

Tandem 2 Cylinder CAD/CAM Compressor
Specifically built for CAD/CAM milling, the AC410 compressor comes with a 100-litre tank capacity. This model is designed to deliver dry, oil-free, and hygienic air operating on three-phase power (single-phase also available).
Description
Details That Matter
- 7-year full parts and labour warranty
- Purpose-built to maintain an 8-bar pressure over long CAM cycles
- Certified food grade resin coated tank
- Added antimicrobial protection with Biocote® silver-ion lining in tank
- Noise reduction option available (see AC410Q)
- Single-phase option available (see AC410-1P)
- Pre-filter for humid climates available upon request
Features
7 Years Warranty
Oil Free
HEPA H14 Dryer Filter
For Humid Climates
Includes Installation Kit
Downloads
Specifications
| POWER | 3PH, 400V, 7.2A, 3.0 kW |
| SOUND OUTPUT dB(A) | 73 |
| CONTINUOUS AIRFLOW AT 8 BAR nl/min | 140 |
| MAX AIR FLOW AT 5 BAR nl/min | 215 |
| TANK SIZE (litres) | 100 |
| HEIGHT (mm) | 745 |
| WIDTH (mm) | 1155 |
| DEPTH (mm) | 550 |
| WEIGHT (kg) | 112 |
