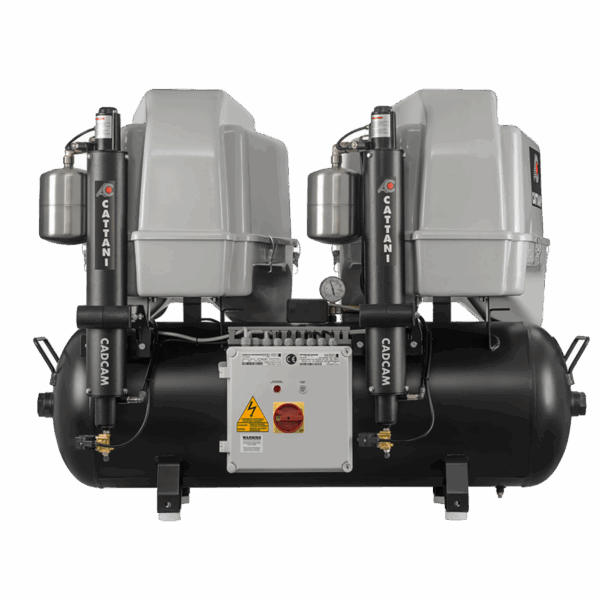

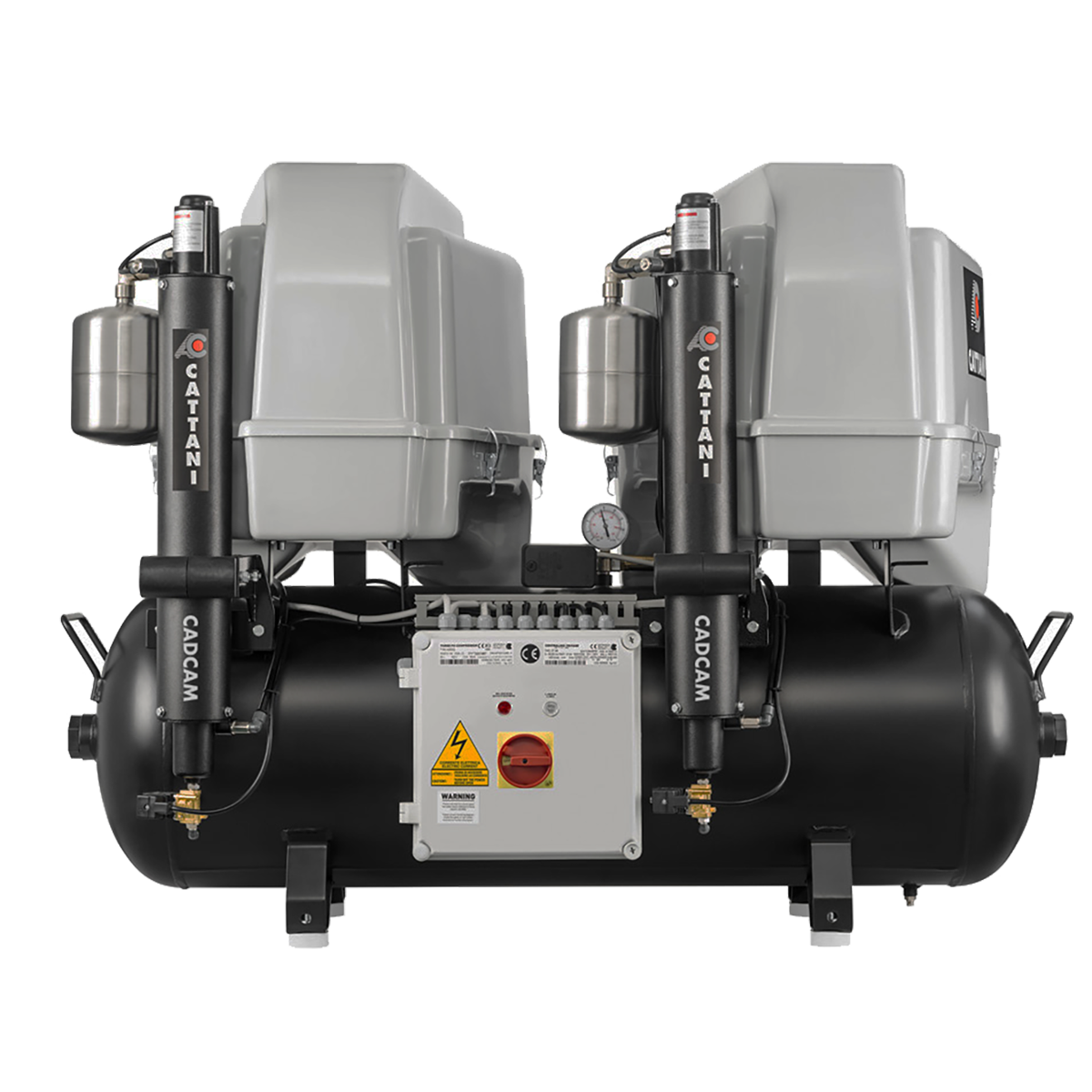

AC410Q-1P
Quiet Tandem 2 Cylinder CAD/CAM Compressor
Specifically built for CAD/CAM milling, the AC410Q-1P compressor comes with a 100-litre tank capacity. This model is designed for premium air delivery with noise reduction, operating on single-phase power (three-phase also available).
Description
Details That Matter
- 7-year full parts and labour warranty
- Purpose-built to maintain an 8-bar pressure over long CAM cycles
- Acoustic hood for significant noise reduction
- Certified food grade resin coated tank
- Added antimicrobial protection with Biocote® silver-ion lining in tank
- Three-phase option available (see AC410Q)
- Pre-filter for humid climates available upon request
Features
7 Years Warranty
Oil Free
HEPA H14 Dryer Filter
For Humid Climates
Low Noise Q Range
Includes Installation Kit
Downloads
Specifications
| POWER | 1PH, 230V, 15.4A, 2.4 kW |
| SOUND OUTPUT dB(A) | 63.8 |
| CONTINUOUS AIRFLOW AT 8 BAR nl/min | 140 |
| MAX AIR FLOW AT 5 BAR nl/min | 215 |
| TANK SIZE (litres) | 100 |
| HEIGHT (mm) | 890 |
| WIDTH (mm) | 1160 |
| DEPTH (mm) | 650 |
| WEIGHT (kg) | 153 |
