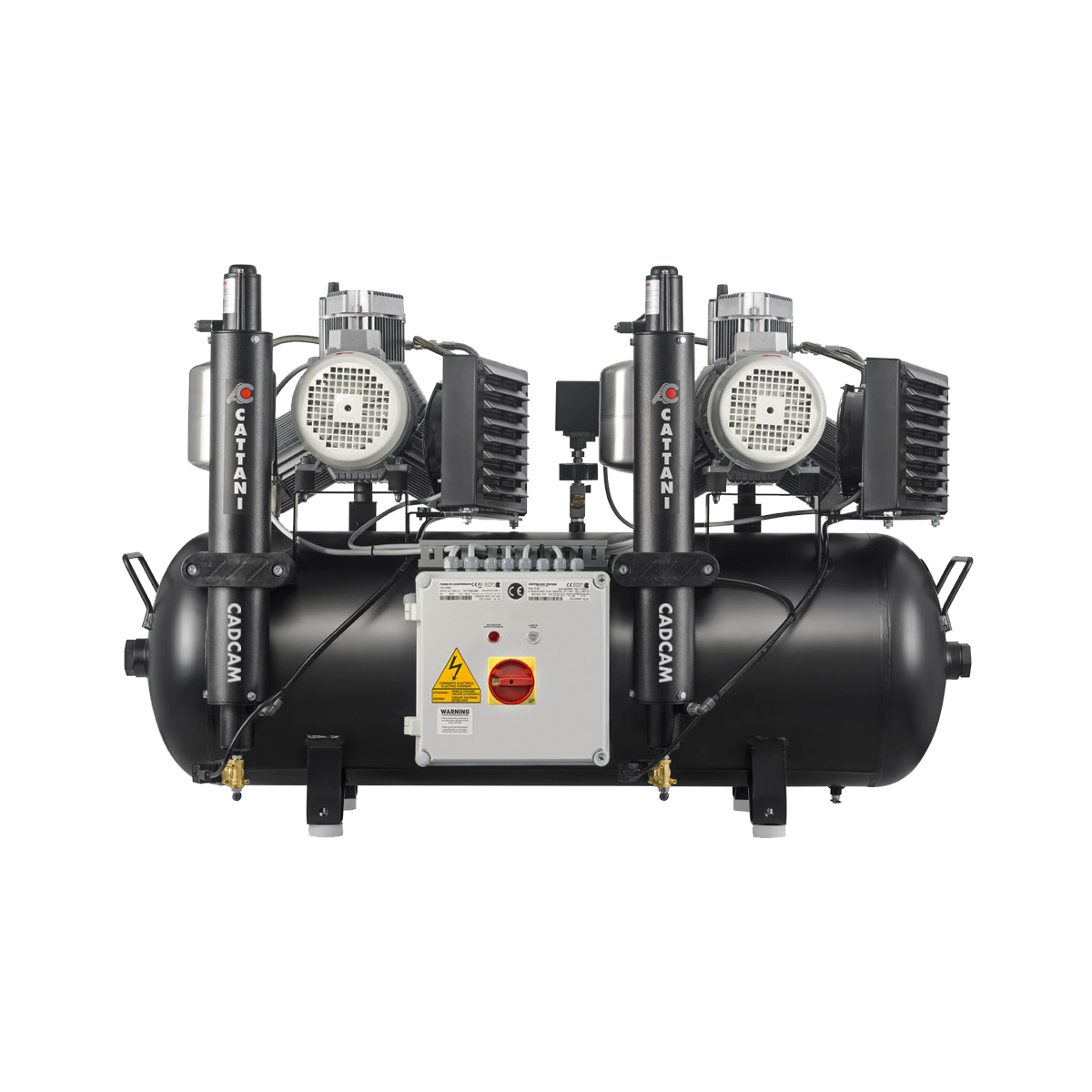

AC610
Tandem 3 Cylinder CAD/CAM Compressor
The AC610 compressor is designed to deliver premium quality for higher performance requirements. With a 150-litre tank capacity, this oil-free compressor has been rigorously tested to deliver world-class precision for CAD/CAM milling.
Description
Details That Matter
- 7-year full parts and labour warranty
- Purpose-built to maintain an 8-bar pressure over long CAM cycles
- 150-litre tank capacity
- Certified food grade resin coated tank
- Added antimicrobial protection with Biocote® silver-ion lining in tank
- Noise reduction option available (see AC610Q)
- Pre-filter for humid climates available upon request
Features
7 Years Warranty
Oil Free
HEPA H14 Dryer Filter
For Humid Climates
Includes Installation Kit
Downloads
Specifications
| POWER | 3PH, 400V, 7.4A, 3.0 kW |
| SOUND OUTPUT dB(A) | 74 |
| CONTINUOUS AIRFLOW AT 8 BAR nl/min | 217 |
| MAX AIR FLOW AT 5 BAR nl/min | 330 |
| TANK SIZE (litres) | 150 |
| HEIGHT (mm) | 890 |
| WIDTH (mm) | 1320 |
| DEPTH (mm) | 590 |
| WEIGHT (kg) | 124 |
