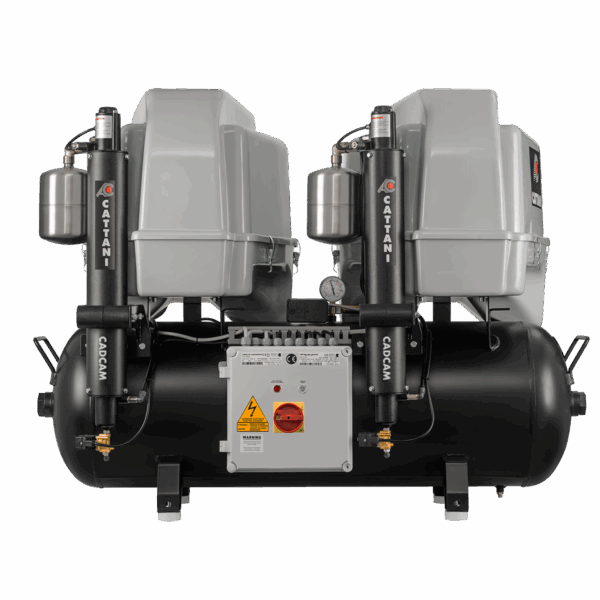

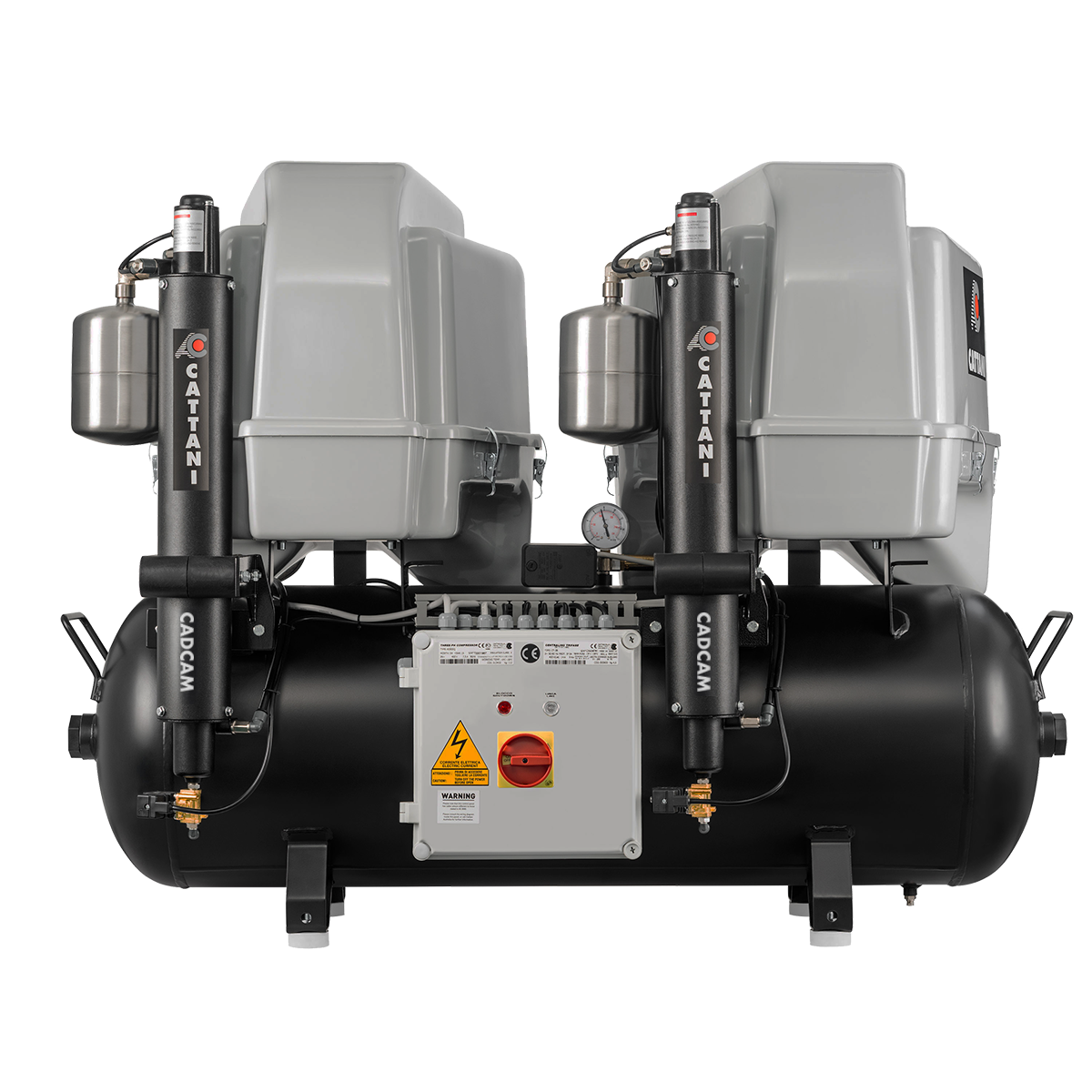

AC610Q
Quiet Tandem 3 Cylinder CAD/CAM Compressor
The AC610Q compressor comes with a 150-litre tank capacity for higher performance requirements. Our Q series of compressors significantly reduces noise levels, making them an excellent option when CAD/CAM equipment is close to the surgery.
Description
Details That Matter
- 7-year full parts and labour warranty
- Purpose-built to maintain an 8-bar pressure over long CAM cycles
- Acoustic hood for significant noise reduction
- 150-litre tank capacity
- Certified food grade resin coated tank
- Added antimicrobial protection with Biocote® silver-ion lining in tank
- Pre-filter for humid climates available upon request
Features
7 Years Warranty
Oil Free
HEPA H14 Dryer Filter
For Humid Climates
Low Noise Q Range
Includes Installation Kit
Downloads
Specifications
| POWER | 3PH, 400V, 7.4A, 3.0 kW |
| SOUND OUTPUT dB(A) | 70.4 |
| CONTINUOUS AIRFLOW AT 8 BAR nl/min | 217 |
| MAX AIR FLOW AT 5 BAR nl/min | 300 |
| TANK SIZE (litres) | 150 |
| HEIGHT (mm) | 1040 |
| WIDTH (mm) | 1320 |
| DEPTH (mm) | 770 |
| WEIGHT (kg) | 174 |
