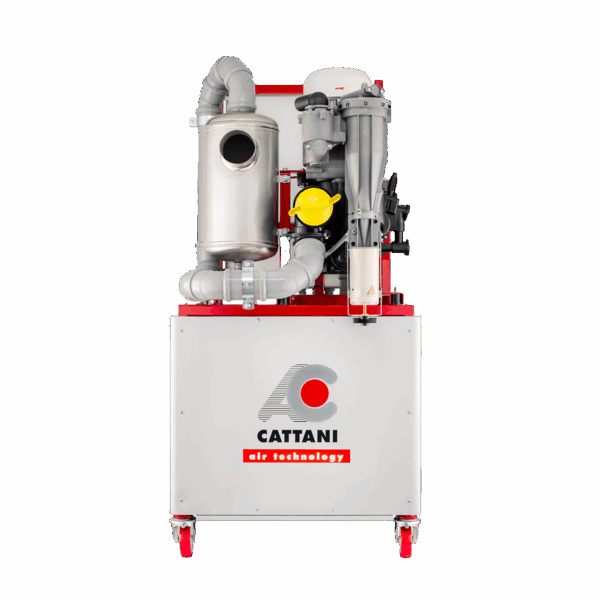

Maxi SMART with ISO 60 Hydrocyclone and Acoustic Cover
15 – 60 chairs
World’s first integrated suction system for large clinics, designed to be installed in parallel to serve up to 60 chairs, with the capacity to serve 15 chairs with a single unit. Integrated with Hydrocyclone amalgam retention, with acoustic cover.
Description
Details That Matter
- 3-year full parts and labour warranty
- Acoustic cover for low noise
- Supplied in kit form, ready for parallel installation
- ISO 60 Hydrocyclone amalgam retention
- Sequential activation according to suction demand
* Maxi SMART is designed as a modular system to be connected in parallel, not to operate as a single unit. Capacity per unit: 12 chairs if the unit is installed on the same level; 15 chairs if the unit is on the level below.
Features
3 Years Warranty
Inverter Control
Amalgam Retention
Includes Installation Kit
Downloads
Specifications
| POWER | 3PH, 400V, 25 A, 11.8 kW |
| SOUND OUTPUT dB(A) | 68 |
| MAX AIR FLOW l/min | 5000 |
| MAX VACUUM FOR CONTINUOUS OPERATION mBar | 240 |
| HYDROCYCLONE AMALGAM RETENTION | Yes |
| HEIGHT (mm) | 1490 |
| WIDTH (mm) | 708 |
| DEPTH (mm) | 1037 |
| WEIGHT (kg) | 270 |
