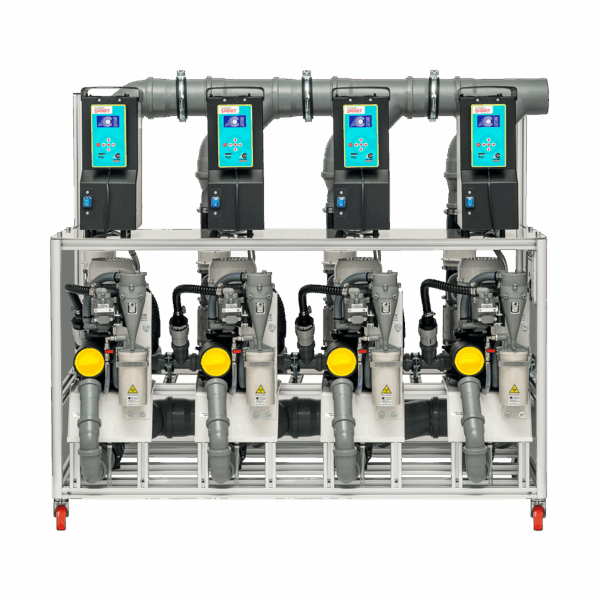

Multi SMART T4 with ISO 18 Hydrocyclone with H14 Filtration
Up to 16 chairs
Designed for the Australasian region, our Italian and Australian engineering and technical teams worked closely to develop more compact solution. Integrated with ISO 18 Hydrocyclone amalgam retention, the Multi SMART T4 is designed to serve up to 16 chairs.
Description
Details That Matter
- 3-year full parts and labour warranty
- ISO 18 Hydrocyclone amalgam retention
- Compact design where space is a premium
- Simple installation and easy access for servicing
- Allows continuous operation even during maintenance
- Designed with built-in redundancy
- Modular design allowing for easy HEPA upgrade onsite
Features
3 Years Warranty
Inverter Control
Amalgam Retention
Includes Installation Kit
Downloads
Specifications
| POWER | 1PH, 230V, 4 x 1.8kW 7.5A, 1x 10A (control panel), Total of 5 x 10A power outlets required |
| SOUND OUTPUT dB(A) | 79.74 |
| MAX AIR FLOW l/min | 6800 |
| MAX VACUUM FOR CONTINUOUS OPERATION mBar | 210 |
| HYDROCYCLONE AMALGAM RETENTION | Yes |
| HEIGHT (mm) | 1280 |
| WIDTH (mm) | 1345 |
| DEPTH (mm) | 760 |
| WEIGHT (kg) | 249 |
